Wyzenbeek vs Martindale: Fabric Test Comparison

Introduction

Fabric durability is one of the most critical parameters in textile performance evaluation, especially in upholstery, contract, and commercial applications. Among the most widely recognized abrasion resistance tests are the Wyzenbeek Test and the Martindale Test. Although both measure how well fabrics withstand repeated wear from rubbing, their methodologies, geographies of usage, and result interpretations differ significantly. This article explores these two testing methods in depth, compares their strengths and limitations, and highlights their role in selecting fabrics for residential and commercial use.

What is the Wyzenbeek Test?

The Wyzenbeek Fabric Rating measures abrasion resistance using the Wyzenbeek test, which is predominantly applied in North America. It is a practical method to assess how upholstery fabrics withstand repeated linear wear. Wyzenbeek testing is primarily governed by ASTM D4157 for abrasion resistance, with performance guidelines often referenced in ASTM D3597.

How the Wyzenbeek Test Works

A fabric sample is clamped taut in a frame.
An oscillating cylinder, wrapped with an abradant (usually cotton duck or wire mesh), rubs back and forth across the warp and weft directions.
One “double rub” equals a complete back-and-forth motion, simulating someone sitting and rising from upholstered furniture.
The test continues until visible wear appears (pilling, yarn breakage, or substantial surface change) or until two yarns break.

Reading the Wyzenbeek Rating

The outcome is expressed in double rubs (cycles).
Higher numbers indicate greater abrasion resistance.
- 3,000 double rubs: Light-duty (low-traffic residential use).
- 9,000 double rubs: Medium-duty (frequent residential use).
- 15,000 double rubs: Heavy-duty (significant use in homes).
- 20,000+ double rubs: Contract/commercial use.
- 30,000+ double rubs: Demanding commercial environments (e.g., hotels, airports, theaters).

Wyzenbeek ratings are crucial for North American markets, where most furniture and contract fabrics are specified using this method.

What is the Martindale Test?

The Martindale Test, developed in the 1940s by J.G. Martindale, is more commonly used in Europe and international markets. Unlike Wyzenbeek’s linear motion, Martindale uses a multi-directional figure-8 motion, which many believe better simulates real-life wear. Martindale testing for abrasion resistance is specified in ISO 12947, while pilling resistance is covered by ISO 12945-2. In the United States, the corresponding standard for abrasion is ASTM D4966.

How the Martindale Test Works

The test fabric is mounted on a plate in the lower part of a Martindale machine.
Discs of worsted wool or sandpaper are placed on the upper plates.
The upper plates rub the fabric in a Lissajous figure-8 motion.
The fabric is continuously checked for signs of wear, such as pilling, thread breakage, or significant surface changes.

Reading the Martindale Rating

Results are expressed in rubs or cycles.
Thresholds provide guidance on end-use suitability.
- Decorative (<10,000 cycles) = Cushions, curtains, light-use items
- Light domestic (10,000–15,000 cycles) = Furniture with limited use (bedroom chairs)
- General domestic (15,000–25,000 cycles) = Everyday home furniture
- Heavy-duty (25,000–30,000 cycles) = Frequently used items like recliners
- Commercial grade (30,000+ cycles) = Hotels, offices, public seating

Because of its multi-directional rubbing, the Martindale test is often considered more representative of natural wear.

Key Differences Between Wyzenbeek and Martindale

Feature	Wyzenbeek Test	Martindale Test
Region of Use	Predominantly North America	Europe, UK, Asia, international
Motion	Linear, back-and-forth (warp & weft)	Multidirectional, figure-8 (Lissajous curve)
Abradant Material	Cotton duck or wire mesh	Wool or sandpaper
Units of Measure	Double rubs	Cycles (rubs)
Durability Thresholds	15k = residential; 30k+ = contract grade	20k = residential; 40k+ commercial heavy use
Simulation Accuracy	Simulates someone sitting/rising on upholstery	Simulates more natural wear with multidirectional rubbing
Direct Comparability	Cannot directly compare to Martindale	Cannot directly compare to Wyzenbeek

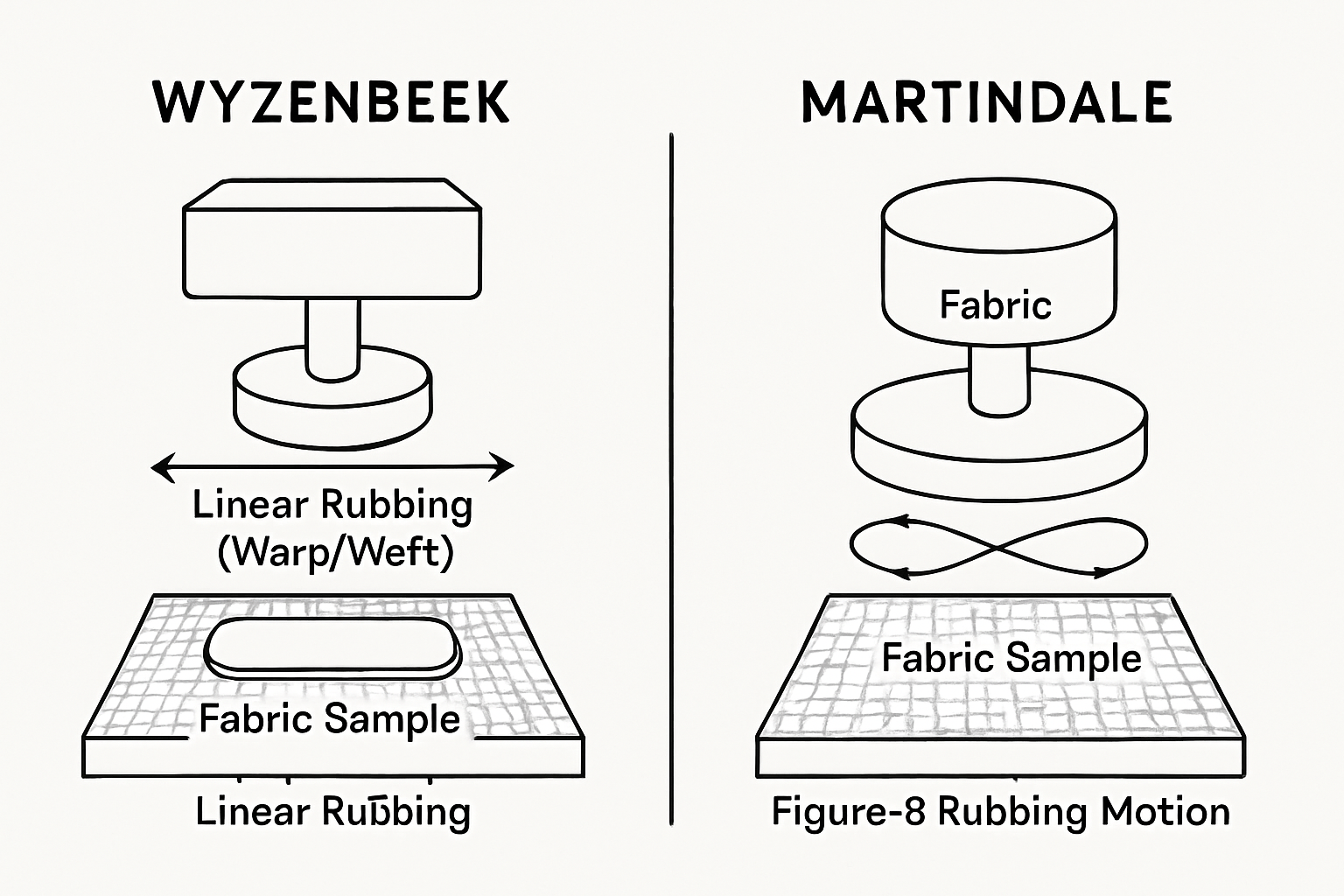

Wyzenbeek vs Martindale Fabric Test Comparison — Wyzenbeek vs Martindale: Fabric Test Comparison

Practical Considerations in Fabric Selection

While Wyzenbeek and Martindale ratings provide useful benchmarks, they are not the only measures of durability. Other factors influencing fabric performance include:

Fiber Content: Natural fibers (e.g., cotton, linen) vs. synthetics (e.g., polyester, nylon).
Weave Structure: Tighter weaves generally resist abrasion better.
Finishes: Performance finishes enhance stain, moisture, and abrasion resistance.
Maintenance: Cleaning and care practices significantly affect fabric lifespan.

Therefore, when sourcing fabrics for residential, hospitality, office, or transport upholstery, fabric specialists must consider both abrasion ratings and additional performance parameters.

Conclusion

The Wyzenbeek and Martindale tests are indispensable tools for evaluating fabric abrasion resistance, but they differ in methodology, measurement, and application geography.

Wyzenbeek is the standard in North America, focusing on linear rubbing motions and measured in double rubs.
Martindale dominates in Europe and beyond, using a figure-8 motion and measured in cycles/rubs.

While both tests assess fabric abrasion resistance, results are not directly interchangeable. Designers, buyers, and manufacturers must interpret them according to regional practices and specific end-use applications. Ultimately, a fabric’s true durability comes from a combination of abrasion resistance, fiber type, construction, finishes, and maintenance practices.

By understanding the differences between Wyzenbeek and Martindale, industry professionals can make informed decisions to ensure that textiles perform well in their intended environments.
